Super GT & Super Formula
Live Data Connection
Live CSV

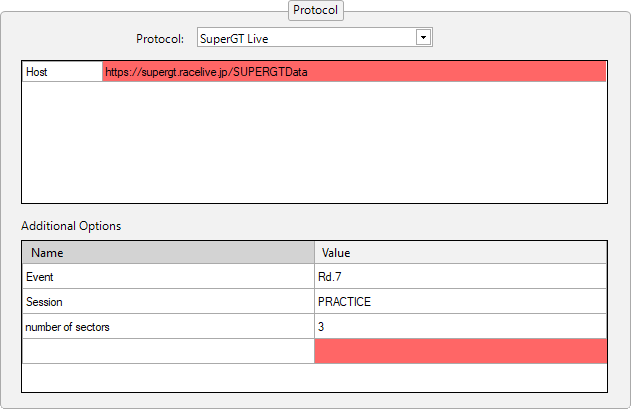

The Live CSV protocol provides real-time data updates directly from the official Super GT website. This option is simple to configure and does not require websocket support.
| Protocol | SuperGT Live |
| Host | https://supergt.racelive.jp/SUPERGTData |
| Event | Current round number (e.g. Rd.7) |
| Session | Session Name (e.g. PRACTICE, QF1300A, QF1500, FINAL) |
RaceNow
The RaceNow websocket protocol provides detailed live data and replay capability.
It was previously available for both Super GT and Super Formula, but it now works only for Super Formula.
Super GT
| Protocol | RaceNow! Websocket |
| Website | ws://52.197.137.172:24001/get |
| Number of Sectors | 3 or 4 |
| Language | japanese or english |
Super Formula
| Protocol | RaceNow! Websocket |
| Website | ws://superformula.racelive.jp:6001/get |
| Number of Sectors | 3 or 4 |
| Language | japanese or english |
The value for the language field will change the writing system for driver and team names. If the value is "Japanese" the Japanese writing system will be used, otherwise it will be the Latin alphabet.
HTML Scraping
To connect live to a Super GT event, you need to setup your championship configuration with the following parameters:
Super GT
| Protocol | Super GT / Super Formula HTML Scraping |
| Website | http://supergt.racelive.jp/live |
Super Formula
| Protocol | Super GT / Super Formula HTML Scraping |
| Website | http://superformula.racelive.jp/live |
Post Session CSVs Data Import
In Super GT, organizer can provide you a zip File containing different CSV (one per car and 2 other csv files). To imports datas into HH Timing, you need to:
- Extract the Zip file
- choose the YYYY _Rd.X_TRACK_FINAL.csv as the main import file.
- Make sure all the CarNoX.csv files are in the same directory
